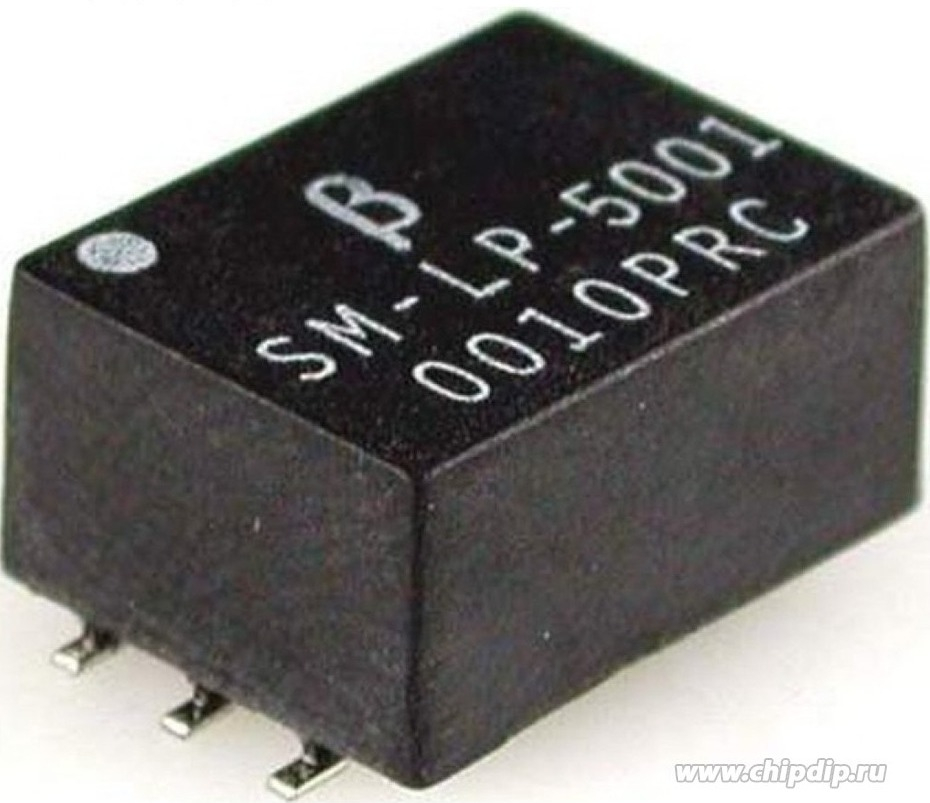

Трансформатор.SM-LP-5001
Описание
Согласующие трансформаторы
Способ монтажа - SMD
Рабочая температура ...+70 ° С
Рабочая частота 0.2 - 4 кГц
Технические параметры
| DCR Primary Side | 115(TYP)(Ohm) |
| DCR Primary Side Max | 115 ohm |
| DCR Secondary Side | 115(TYP)(Ohm) |
| DCR Secondary Side Max | 115 ohm |
| Frequency Response | ±0.25DB(dB) |
| High Potential | 2000Vrms |
| Insertion Loss | 2(dB) |
| Insertion Loss (Max) | 2 dB |
| Lead Style | Gull Wing |
| Mounting Style | Surface Mount |
| Operating Frequency | 0.2KHZ TO 4KHZ(Hz) |
| Operating Temp Range | -20C to 85C |
| Packaging | Tube |
| Pin Count | 6 |
| Primary Side Impedance | 600(ohm) |
| Product Depth (mm) | 14(mm) |
| Product Height (mm) | 7.5(mm) |
| Product Length (mm) | 9(mm) |
| Return Loss | 24(dB) |
| Return Loss (Min) | 24 dB |
| Transformer Type | Line Matching |
| Turns Ratio | 1 |
| Вес, г | 2.5 |
890.0 ₽
Наличие по запросу
