Волоконно-оптический.приемопередатчик.AFBR-59F2Z
Описание
Optoelectronics\Fiber Optics\Fiber Optic Transmitters, Receivers, Transceivers

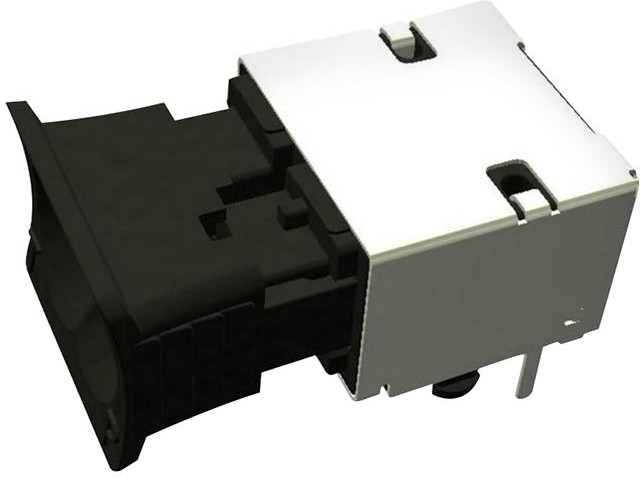

AFBR-59FxZ Compact 650nm TransceiversBroadcom AFBR-59FxZ Compact 650nm Transceivers have the ability to implement Fast Ethernet (100Mbps) communications over 2.2mm jacketed standard Polymer Optical Fiber (POF). Their innovative bare fiber locking mechanism allows for the connection of POF cable with a simple insert and lock system eliminating the need for connectors. This facilitates fast installation and maintenance.
Технические параметры
| Application: | Industrial |
| Brand: | Broadcom/Avago |
| Connector Type: | No Connector |
| Data Rate: | 250 MBd |
| Emitting Source: | LED |
| Factory Pack Quantity: Factory Pack Quantity: | 150 |
| Fall Time: | 3 ns |
| Fiber Type: | Plastic Optical Fiber(POF) |
| Manufacturer: | Broadcom Limited |
| Maximum Operating Temperature: | +85 C |
| Maximum Output Current: | 40 mA |
| Minimum Operating Temperature: | -40 C |
| Moisture Sensitive: | Yes |
| Mounting Style: | Through Hole |
| Operating Supply Voltage: | 3.3 V |
| Package / Case: | 24.4 mm x 15.9 mm x 15.5 mm |
| Packaging: | Tube |
| Peak Wavelength: | 675 nm |
| Product Category: | Fiber Optic Transmitters, Receivers, Transceivers |
| Product Type: | Fiber Optic Transmitters, Receivers, Transceivers |
| Product: | Transceivers |
| Rise Time: | 3 ns |
| Series: | AFBR-5 |
| Subcategory: | Fiber Optic |
| Wavelength: | 650 nm |
| Максимальная Скорость Передачи Данных | 250Мбод |
| Напряжение Питания | 3.3В |
| Типичное Значение Длины Волны | 650нм |
| Вес, г | 19.12 |
